Identity Governance Rules

Last modified 24 Jul 2025 08:58 +02:00
Object governance feature
This page describes Object governance midPoint feature. Please see the feature page for more details.

Identity governance is based on high-level business-oriented rules, that are mostly concerned with responsibilities.

Mechanism Overview

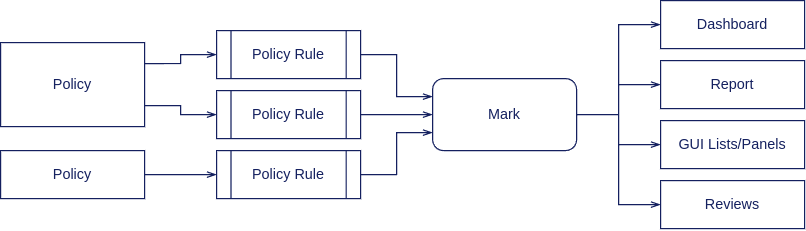

In midPoint environment, identity governance rules are implemented with policy rules and marks:

  1. Policy rules check whether governance rules are followed. E.g. a policy rule could check whether an application has an owner.

  2. Policy rules set appropriate marks when the defined rule is violated. E.g. a policy rules marks an application Orphaned if it does not have an owner.

    Policy rules are placed into appropriate objects, such as policies and archetypes. Policies and archetypes group policy rules, forming concepts with a business meaning, such as "behavior of business roles" or "Application containing sensitive data". These policies and archetypes are then applied to individual objects in the ordinary way (usually by using assignment).

  3. Marks are applied to the objects specified by the rules. These are effective marks: they are applied by the rules, but they are also removed by the rules as necessary.

  4. Marks applied to individual objects can be used to display, report and address the violations using several mechanisms, such as dashboards, reports, and reviews. Marks are also displayed during ordinary GUI interactions, thus attracting attention to policy violations.

Policy rules and marks

Enforcing Application Owners

Almost every identity governance scenario requires every application to have an owner. The ideal place for implementing this governance rule is the Application archetype. Application archetype is a pre-configured object (present in the default initial objects) which is applied to all applications. Therefore, the natural method of enforcing the policy is to apply it at the archetype level.

MidPoint comes with a couple of pre-configured policies that are ready-made to be applied. To support the ownership requirement, there is the Require owner pre-configured policy. When this policy is applied to an archetype, all objects of that archetype are required to have at least one owner. As the archetype efficiently acts as a meta-role, the policy rule in the inducement is applied to all applications.

The policy can be applied by assigning the policy to an archetype:

Ownership requirement policy applied to application archetype
<archetype oid="00000000-0000-0000-0000-000000000329">
    <name>Application</name>
    <assignment>
        <targetRef oid="6451bca8-4035-4fb3-8ab1-5de14da59e18" type="PolicyType"/>
    </assignment>
</archetype>

<policy oid="6451bca8-4035-4fb3-8ab1-5de14da59e18">
    <name>Require owner</name>
    ...
    <inducement>
        <identifier>policy-require-owner</identifier>
        ...
    </inducement>
</policy>

Inducement in the Require owner policy contains a policy rule, that sets the Unowned mark when the affected object does not have an owner. Applications that violate this policy are displayed on the compliance dashboard. When this policy is applied to applications for the first time, all applications need to be recomputed. The recomputation triggers an evaluation of the policies that set or clear the marks as appropriate.

The Require owner policy is implemented in an inducement in the Require owner policy object. This is order 2 inducement, which means it does not apply to the assignee object (Application archetype). Instead, the inducement applies to all objects that have the Application archetype assigned. This is the meta-role mechanism in action.

Dashboards and Reporting

Once the policy is applied, and the archetype and the affected objects (applications) are recomputed, violations are recorded in the form of an object mark. The objects that violate the rule can be found by querying the effective mark reference:

Unowned mark query
effectiveMarkRef matches ( oid = "5508aca4-2aef-47a6-ad50-892389823c91" )

This query can be used in the midPoint user interface using the Advanced search. However, it is more practical to set up a corresponding object collection, which can be later re-used:

Unowned applications object collection
<objectCollection oid="cc8c1397-e5c4-456c-bd98-f07b3dca97ec">
    <name>Unowned applications</name>
    <type>ServiceType</type>
    <filter>
        <q:text>effectiveMarkRef matches ( oid = "5508aca4-2aef-47a6-ad50-892389823c91" ) and archetypeRef matches ( oid = "00000000-0000-0000-0000-000000000329" )</q:text>
    </filter>
    ...
</objectCollection>
The Unowned mark and the Unowned applications object collection are part of the default midPoint configuration (initial objects).

Such an object collection can be easily used in a dashboard widget:

Unowned applications dashboard widget
<dashboard oid="f941f3fc-dcef-4415-9e79-ae56b185a501">
    <name>compliance-dashboard</name>
    ....
    <widget>
        <identifier>orphaned-applications</identifier>
        <display>
            <label>
                <orig>Applications without owners</orig>
            </label>
            <icon>
                <cssClass>fa fa-user-xmark</cssClass>
            </icon>
            <color>var(--success)</color>
        </display>
        <displayOrder>110</displayOrder>
        <data>
            <sourceType>objectCollection</sourceType>
            <collection>
                <collectionRef oid="cc8c1397-e5c4-456c-bd98-f07b3dca97ec" type="c:ObjectCollectionType"/>
            </collection>
        </data>
        <presentation>
            <dataField>
                <fieldType>value</fieldType>
                <expression>
                    <proportional>
                        <style>value-only</style>
                    </proportional>
                </expression>
            </dataField>
        </presentation>
    </widget>
</dashboard>

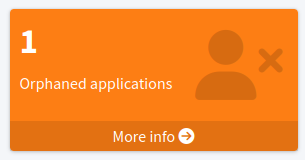

Orphaned applications dashboard widget

Custom Policy Rules

Custom policy rules can be implemented in a similar fashion. There are several options. The simpler option is to include the rules directly in the archetype (or a similar role-like object).

The following rule requires all business roles to have at least one approver.

Business role archetype
<archetype oid="00000000-0000-0000-0000-000000000329">
    <name>Business role</name>
    ...
    <inducement>
        <identifier>business-role-require-approver</identifier>
        <policyRule>
            <name>rule-require-approver</name>
            <policyConstraints>
                <minAssignees>
                    <name>constraint-require-approver</name>
                    <multiplicity>1</multiplicity>
                    <relation>org:approver</relation>
                </minAssignees>
            </policyConstraints>
            <markRef oid="aa44a866-6311-11f0-9896-57fdbf809a6a"/> <!-- "Broken process" mark -->
            <policyActions>
                <record>
                    <description>Record the mark for use in dashboards and reports.</description>
                </record>
            </policyActions>
            <evaluationTarget>object</evaluationTarget>
        </policyRule>
    </inducement>
</archetype>

The rule has one minAssignees that requires at least one assignee with the approver relation to be present for the affected object (application) at any time. In case the rule is violated, the Broken process object mark will be applied to the affected object.

The policy rule evaluation target must be set to object for this rule to work properly, i.e. the rule will be applied to the whole object. Use the evaluationTarget clause of the policy rule for this purpose.

<evaluationTarget>object</evaluationTarget>

The rule is setting the Broken process mark to every effected object, which means it efficiently marks all business roles without approvers. However, such mark is not part of the default midPoint configuration, therefore it has to be created first:

Broken process mark
<mark oid="aa44a866-6311-11f0-9896-57fdbf809a6a">
    <name>Broken process</name>
    <description>Mark for object that have process-related misconfigurations.</description>
    <display>
        <icon>
            <cssClass>fa fa-user-xmark</cssClass>
        </icon>
    </display>
    <assignment id="1">
        <identifier>archetype</identifier>
        <targetRef oid="00000000-0000-0000-0000-000000000701" type="ArchetypeType"/>
    </assignment>
</mark>
MidPoint has a set of marks pre-configured as part of its initial objects. Pre-configured object marks that are part of the initial objects can be re-used for custom policy rules. However, it is likely you will need to create your custom marks.

Custom Packaged Policies

The method described in the previous section placed a policy rule directly into the affected archetype. While this approach is feasible and correct, re-using of such policies has limits. When it is expected that a certain policy could be re-used, there is a more convenient approach. Policy rules implementing such a policy can be placed into a dedicated policy object, which "packages" the policy.

Require approver policy
<policy oid="36103ab2-6313-11f0-b5d6-cf6a2e7b791d">
    <name>Require approver</name>
    ...
    <inducement>
        <identifier>policy-require-approver</identifier>
        <orderConstraint>
            <order>2</order>
        </orderConstraint>
        <policyRule>
            <name>rule-require-approver</name>
            <policyConstraints>
                <minAssignees>
                    <name>constraint-require-approver</name>
                    <multiplicity>1</multiplicity>
                    <relation>org:approver</relation>
                </minAssignees>
            </policyConstraints>
            <markRef oid="aa44a866-6311-11f0-9896-57fdbf809a6a"/> <!-- "Broken process" mark -->
            <policyActions>
                <record>
                    <description>Record the mark for use in dashboards and reports.</description>
                </record>
            </policyActions>
            <evaluationTarget>object</evaluationTarget>
        </policyRule>
    </inducement>
</policy>
The inducement in the Require approver policy object is an order 2 inducement. Such inducement does not apply to the assignee object (Business role archetype). Instead, it applies to all objects that have the Business role archetype assigned. See meta-role mechanism for more details.

Such packaged policy can be applied to the Business role archetype by assignment:

Approver requirement policy applied to business role archetype
<archetype oid="00000000-0000-0000-0000-000000000321">
    <name>Business role</name>
    <assignment>
        <targetRef oid="36103ab2-6313-11f0-b5d6-cf6a2e7b791d" type="PolicyType"/>
    </assignment>
</archetype>

Packaging policies is not only advantageous for re-using policies but also for governance. All the related policy rules that implement a certain policy can be neatly packaged inside one object. The resulting policy object encapsulates the policy and it makes it easy to maintain and manage. E.g. a policy can be reviewed as one logical unit, it can have an owner, changes to the policy can be managed using an approval process and so on.

See Also

Compliance

This feature is related to the following compliance frameworks:
