Shadow Reclassification Task

Last modified 23 Apr 2025 20:28 +02:00
Table of Contents

After a shadow object is discovered on a resource, midPoint tries to assign a kind and an intent to it, or classify it. Kind and intent define the type of the object from midPoint’s point of view. (For more information, see Kind, Intent and ObjectClass.) Only after being classified, midPoint can reasonably work with the shadow: create or find a focus object for it, execute inbound and outbound mappings, and so on.

MidPoint uses object type delineation in order to classify the shadows.

However, you’re likely to encounter situations - often during solution development or testing - when you need to change the delineation of object types because you’ve found out it’s not quite correct, or you need to split existing object types into finer-grained ones. All new (unclassified) objects will get classified using the new delineation automatically. But, primarily to ensure solution stability, midPoint doesn’t reclassify shadows that are already classified.

Reclassify Shadows after Object Type Changes

When you need to reclassify already classified shadows, you need to explicitly instruct midPoint to do it. You can do so either using an XML task definition or via GUI.

Define Reclassification Task in XML

You can reclassify resource object shadows using a task like this:

Shadow reclassification task
<task
    xmlns="http://midpoint.evolveum.com/xml/ns/public/common/common-3"
    xmlns:c="http://midpoint.evolveum.com/xml/ns/public/common/common-3"
    xmlns:org="http://midpoint.evolveum.com/xml/ns/public/common/org-3"
    xmlns:ri="http://midpoint.evolveum.com/xml/ns/public/resource/instance-3"
    >
    <name>Reclassify HRIS shadows</name>
    <assignment id="1">
        <targetRef oid="00000000-0000-0000-0000-000000000503" relation="org:default" type="c:ArchetypeType">
            <!-- Import task -->
        </targetRef>
        <activation>
            <effectiveStatus>enabled</effectiveStatus>
        </activation>
    </assignment>
    <archetypeRef oid="00000000-0000-0000-0000-000000000503" relation="org:default" type="c:ArchetypeType">
        <!-- Import task -->
    </archetypeRef>
    <roleMembershipRef oid="00000000-0000-0000-0000-000000000503" relation="org:default" type="c:ArchetypeType">
        <!-- Import task -->
        <_metadata>
            <provenance>
                <assignmentPath>
                    <sourceRef oid="145b4c3b-04b4-4fe7-9fe8-f2b7959c235d" relation="org:default" type="c:TaskType"/>
                    <segment>
                        <segmentOrder>1</segmentOrder>
                        <assignmentId>1</assignmentId>
                        <targetRef oid="00000000-0000-0000-0000-000000000503" relation="org:default" type="c:ArchetypeType"/>
                        <matchingOrder>true</matchingOrder>
                    </segment>
                </assignmentPath>
            </provenance>
        </_metadata>
    </roleMembershipRef>
    <taskIdentifier>1745418012904-60410-3</taskIdentifier>
    <ownerRef oid="00000000-0000-0000-0000-000000000002" relation="org:default" type="c:UserType">
        <!-- administrator -->
    </ownerRef>
  <objectRef oid="08a10b74-7df6-4d56-b36f-3074a1b6557f" relation="org:default" type="c:ResourceType">
        <!-- HRIS resource -->
    </objectRef>
    <binding>loose</binding>
    <activity>
        <work>
            <import>
                <resourceObjects>
                    <resourceRef oid="08a10b74-7df6-4d56-b36f-3074a1b6557f" relation="org:default" type="c:ResourceType">
                        <!-- HRIS resource -->
                    </resourceRef>
                    <objectclass>ri:AccountObjectClass</objectclass>
                </resourceObjects>
            </import>
        </work>
        <execution>
            <mode>preview</mode>
            <configurationToUse>
                <predefined>development</predefined>
            </configurationToUse>
        </execution>
    </activity>
</task>

Reclassify Shadows Using GUI

Firstly, select your resource under  Resources >  All resources and make your changes to the object type.

Once you’re done with the changes to the object type:

  1. In the left-side resource menu, select  Resource objects.

  2. At the bottom of the object list, click  Reclassify.

  3. Click Yes in the modal dialog that appears to confirm the reclassification.

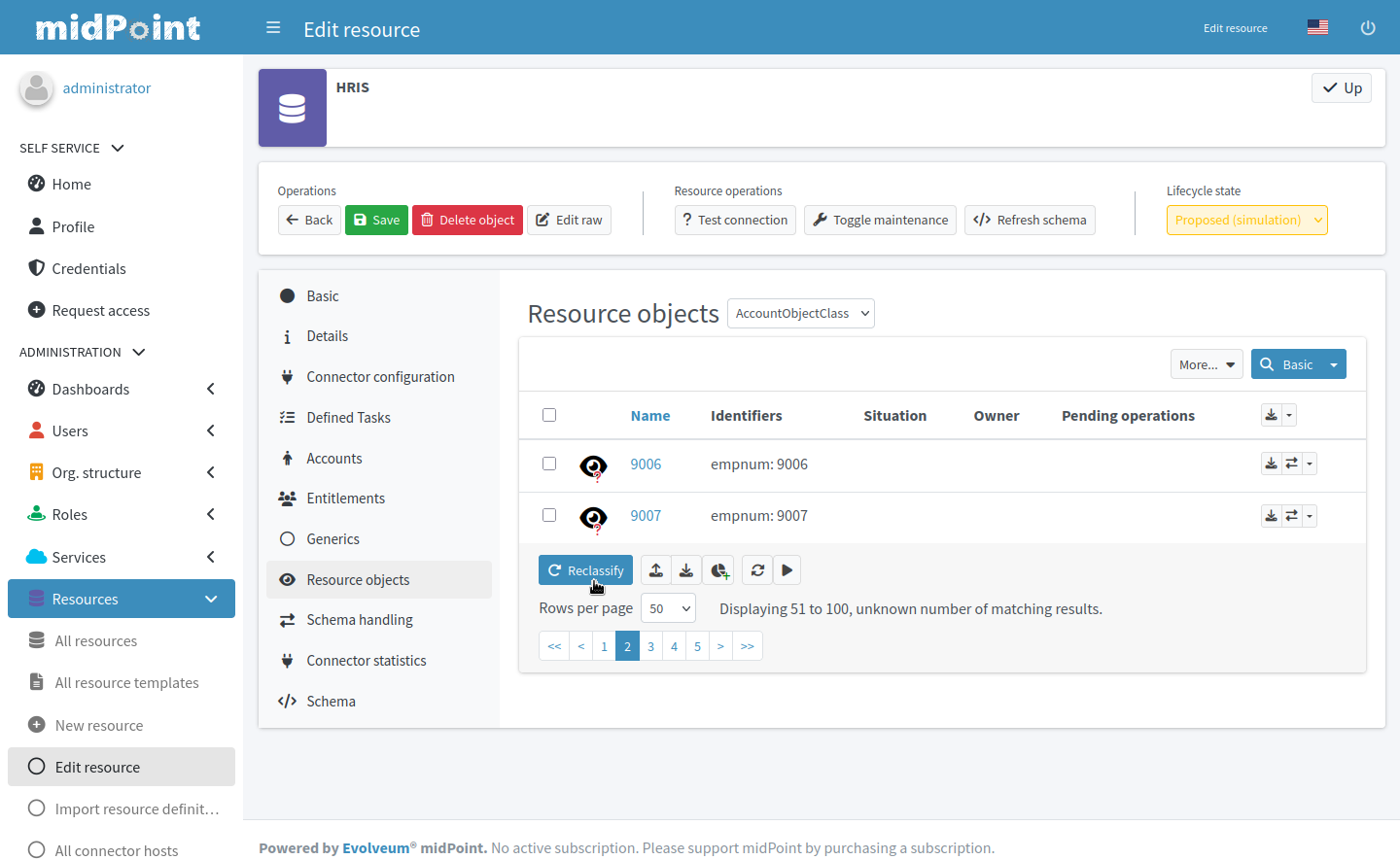

shadow reclassification task launch button on resource objects list
Figure 1. Shadow reclassification button in the resource object list view

The resource object list contents won’t change after this action. Navigate to  Accounts to check the result of the reclassification.

Resource objects vs. accounts

There are two items in the resource navigation menu that may display confusingly similar contents: Resource objects and Accounts. However, they’re not the same and they’re very useful when adjusting object types classification.

  • The Resource objects section lists all objects found on the resource that are of the object class selected at the top of the list, regardless of any object type filtering.

  • The Accounts section lists account shadows created based on the overal resource object type setup, including the filtering rules. This is the section where you see results of the filtering rules you set in the resource object type configuration. Once you run shadow reclassification task, contents of this section reflect your updates to resource data filtering. The Resource objects section contents stay the same.
